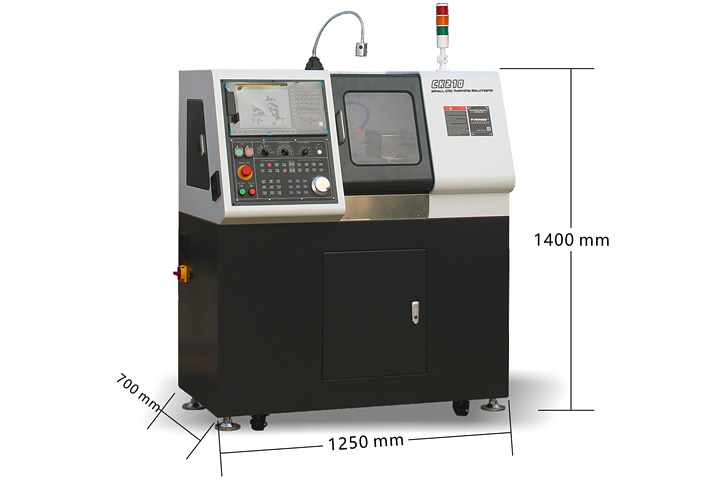

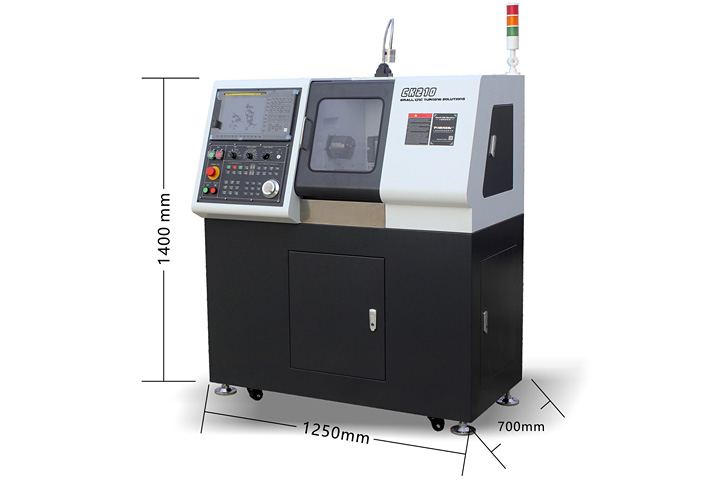

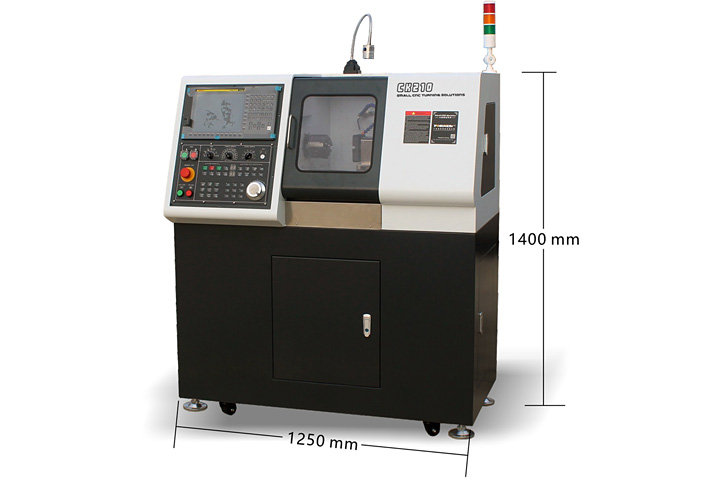

Compact education CNC lathe, the most space-efficient CNC machine designed for educational settings. This compact, small education CNC lathe is the ideal introduction to CNC machining for students, capable of performing intricate turning and high-precision small part manufacturing.With an industry-standard FANUC Series Oi-TF Plus control, allowing students to gain hands-on experience with the same technology used in professional settings. With the ability to cut light materials and turning metals, this machine bridges the gap between classroom learning and real-world manufacturing, preparing students for high-wage, high-demand careers in advanced manufacturing.Equip students with practical skills and experience using the same control systems found in the industry,prepare students for the workforce with hands-on experience in modern machining and manufacturing processes.

Chuck with three jaws

100mm 4 inch self-centering,optional 4-jaw chuck.Use cast iron spindle box,It has good rigidity and stability, which benefits to the machining precision.Spindle with encoder, capable of turning threads.

Lubrication system

This machine is designed with a guide rail lubrication system, for extended machine lifespan.

Efficient Cooling and Filtration

Our large-capacity circulation cooling water tank, equipped with a filtration system, effectively dissipates heat and removes impurities, ensuring optimal performance and extending the lifespan of your tools . With manual and g-code automatic control.

Automatic tool change

Equipped with a 4-station automatic tool change for processing more complex parts,optional 8-station automatic tool change.Turning tool specifications is 12*12mm .

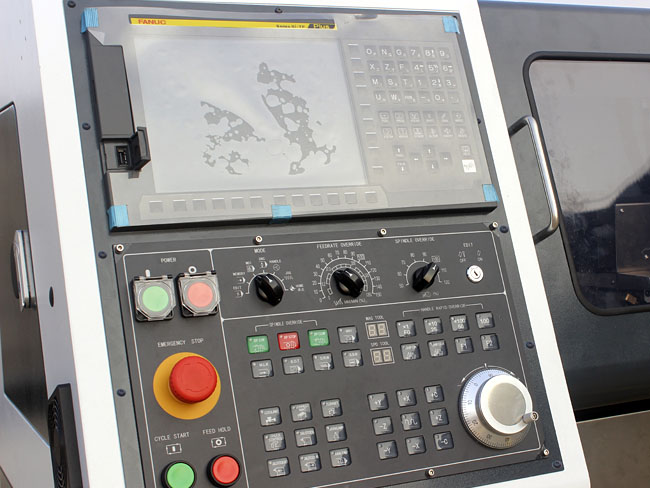

FANUC Series Oi-TF Plus

It is a fundamental CNC system tailored for turning applications. This basic yet capable system offers customisable functions and screens, perfectly suited for fine surface machining and reducing cycle times.

Machine tool body

Machine tool bod selection of high-quality casting materials,with lathe tailstock,semi-automatic lubricSation system,protect the rail life and ball screws for unmatched precision.

Technical parameters
Description	Standard	Optional
Positioning accuracy:	0.02mm
Repeatability accuracy	0.03mm
Control system	FANUC Series Oi-TF Plus	SINUMERIK 808D
Automatic tool change system(ATC)	4 Tools	8 tools
Turning diameter over bed(max)	210mm
Chuck diameter	100mm
Spindle speed	300-1800r/min
Spindle through-hole	26mm
Spindle mount	MT4
Spindle motor power	1100W
Work-piece cooling	Water Cooled /29L
X axis travel	90mm
Z axis travel	300mm
X/Z axis motor	400W Servo Motor
The max moving speed	8000mm/min
The max feeding speed	4000mm/min
Full cast iron	Full cast iron
MPG handwheel	4 axis
Tool dimension	12×12mm
Tailstock taper	MT2
Tailstock sleeve diameter	20mm
Travel of tailstock	25mm
Power	380VAC (3 Phase)
Weight(NW/GW)	280/320KG
Overall dimension	1250×700×1400mm
Packing size	1400×860×1600mm
